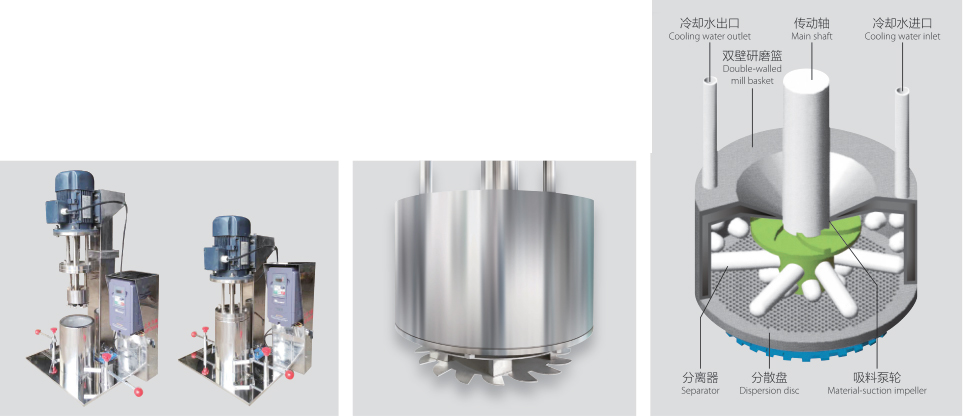

本機是一種集研磨分散功能于一體的新型化工設備。能源消耗低，生產效率高，操作簡單，易維護，易清洗，換色方便。適用于獨立式攪拌桶操作和高、低粘度的混漿。
This machine combines both milling and dispersing function. New design with energy saving, high efficiency, easy operation,easy maintenance, cleaning and changing color. Applicable for independent tank operation and high/low viscosity paste.
| 規格 Type | LS-3 | LS-5 | LS-10 | LS-20 | LS-40 |
| 混漿容量 Paste capacity (L) | 2~3 | 30~100 | 100~150 | 200~500 | 400~1000 |
| 主電機功率 Main motor power (kw) | 0.75 | 7.5 | 11 | 22 | 30~37 |
| 主軸轉速 Speed (r/min) | 0~3000 | 0~1600 | 0~800 | 0~600 | 0~500 |
| 升降行程 Lift (mm) | 260 | 800 | 800 | 900 | 1050 |
| 油泵電機功率 Oil pump power (kw) | - | 0.55 | 0.75 | 1.1 | 1.5 |
| 重量 Weight (kg) | 80 | 500 | 1500 | 2500 | 2800 |
| 外形尺寸 Overall size(L×W×H) (mm) | 350×250×700 | 1750×650×1600 | 1860×710×1730 | 2145×860×1955 | 2600×920×2100 |
