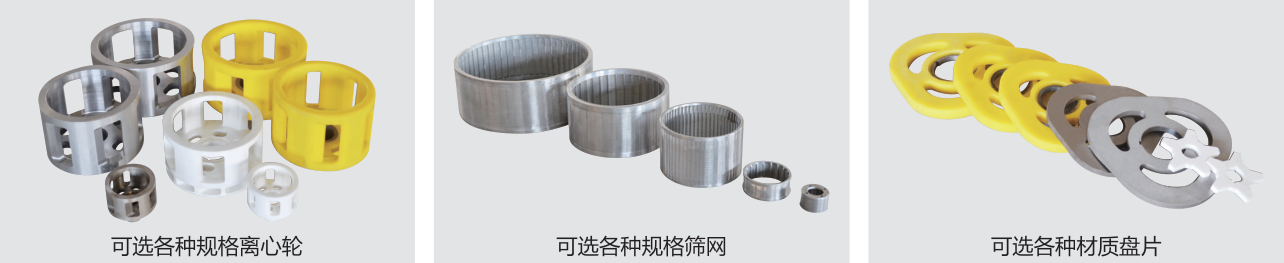

通惠全新機型CDS大流量砂磨機采用新研發功能部件為你提供更經濟的濕法研磨工藝和技術，高效率研磨盤片和超大離心輪及篩網使研磨珠子能更好的分布在研磨腔，利用離心動態分離式篩網提高流量，研磨珠能安全的分離，甚至在高流量時高效率的分離系統發揮作用，包含的單元有：●離心輪及篩網和整合的盤片；●特殊之超大篩網。
The new full-volume Dynamic-Centrifugal-Cartridge-System o?ers optimized energy saving wet milling technology by con-sequent combination of a multitude of newly developed and ideally matching functional elements. High e?ciency grinding discs with a large-surface slotted sieve to get the better beads distributed in the mill chamber. Enhanced ?ow rate capability by centrifugal implement screen. Operationally safe separation of grinding beads even with particularly high ?ow rates due to the highly e?cient separator system, consisting of: ●De?ector cage with integrate grinding disc. ●Large-surface slotted sieve.
機器的概念和特點 Concept and main features
● 排除腔體內無效徑向力
● 可更換各種材質的內腔體
● 可更換前后端蓋和易磨損備件為耐磨損材質

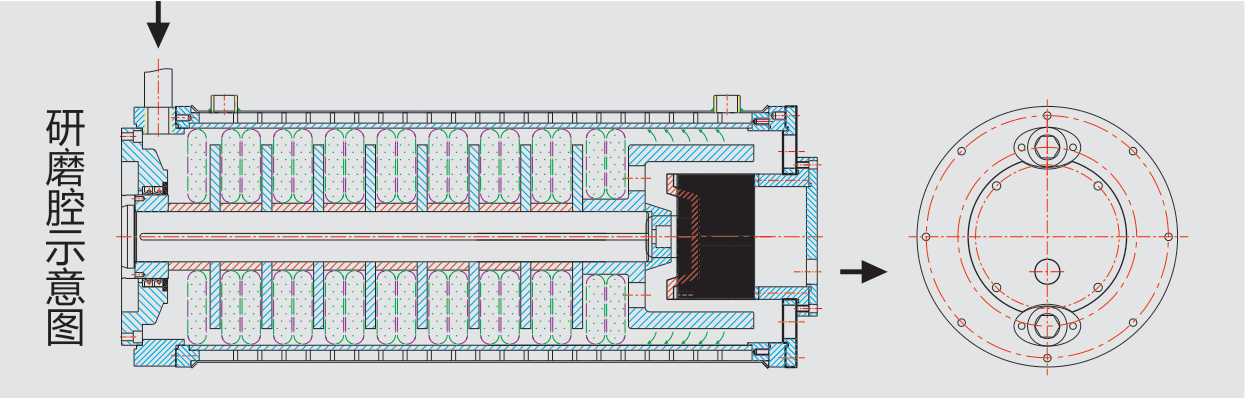

● 特殊盤片和軸心設計
● 離心動態分離式篩網
● Elimination of all radial openings in the mill chamber
● Allowing for installation of exchangeable, through-hardened inner liner
● Exchangeable, through-hardened front & end plates and hardened wear bushings at exposed locations
● Combination of neutral and conveying high intensity agitator discs, speci?c design featuring increased diameter
● Bead retention by centrifugal implement screen
CDS大流量砂磨機優點 CDS Large ?ow rate grinding mill
● 介于高能量密度和傳統砂磨機之間的高效率研磨設備
● 通常使用單道次研磨工藝
● 特殊的研磨珠保持設計
● 特殊之超大篩網清洗設計
● 適用于高磨損產品
● 研磨分散大批量涂料
● 利用離心動態分離式篩網提高流量
● 容易更換產品接觸部之備件
● Closing gap between high enery density mills and convention mills
● Usually singal pass process
● Unique media retention device
● Unique cleaning feature of large surface screen
● Advantageous grinding of abrasive products such as marine pains, antifouling ,heavy duty protective coatings
● Dispersing grinding of bulk paint (primer, filler)
● Enhanced flow rate capability by centrifugal implement screen
● Easy to exchange product contact parts

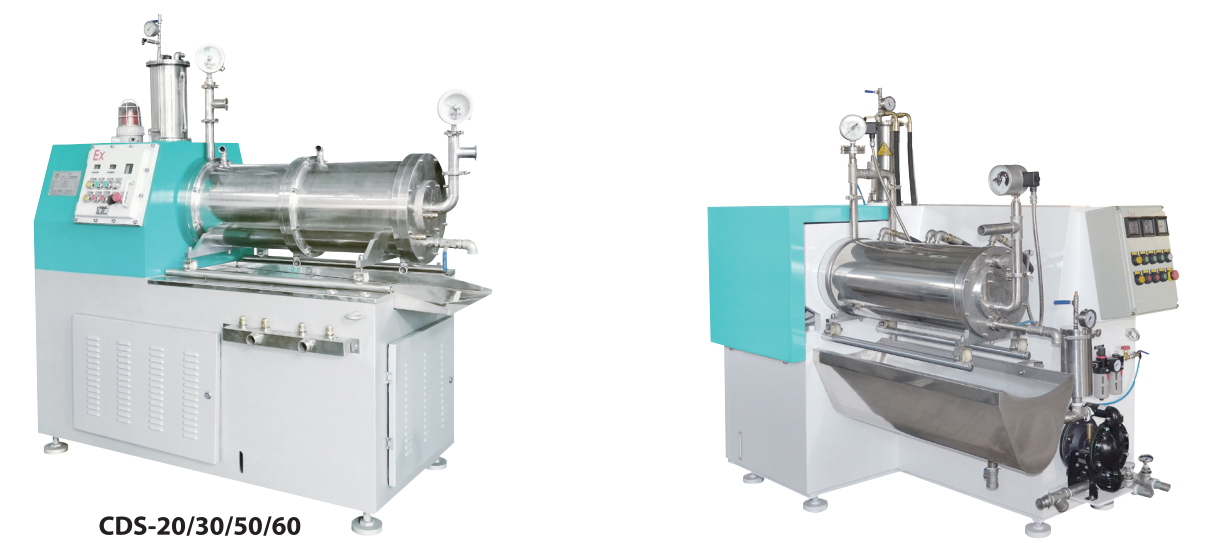

技術參數 Technical parameters
| 型號 Type | CDS-20 | CDS-30 | CDS-50/60 | CDS-100 | CDS-300 | CDS-500 | CDS-1000 |
主機功率 | 18.5~22 | 22~30 | 37~45 | 55~75 | 90~132 | 160~200 | 315~355 |
研磨腔容積 | 20 | 30 | 50/60 | 100 | 300 | 500 | 1000 |
產品最高流量 | 50~250 | 100~500 | 200~1000 | 250~2500 | >2000 | >3000 | >5000 |

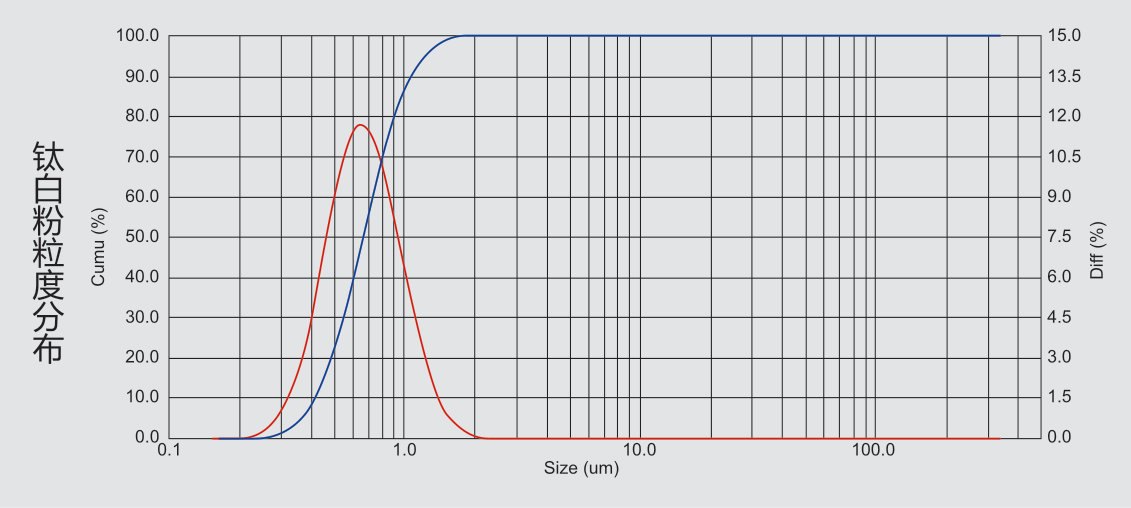

研磨珠粒徑可選用0.2mm~1.0mm，研磨物料至亞微米甚至納米級別變得輕松自如。保守估算同等條件下研磨效率至少是傳統砂磨機的2倍以上。
We can choose the grinding beads of diameter 0.2mm~1.0mm to grind materials, and it easily make materials' finess achieved submicron even nanometer. On a conservative estimate and a equal conditions, the grinding efficiency is at least 2 times more than the traditional sand mill's
